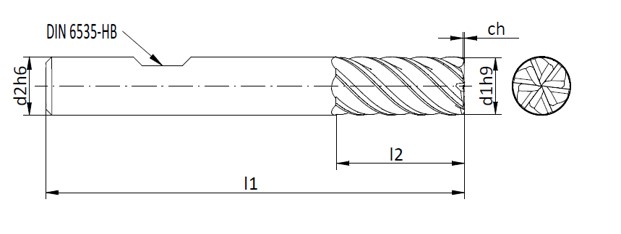

SM08 High Power Finish Freze
| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM08-0600413057P0245 | 6 | 57 | 13 | - | 6 | - | 0.2x45° | - | 6 |
| SM08-0600413057P0245 | 6 | 75 | 25 | - | 6 | - | 0.2x45° | - | 6 |
| SM08-0800419063P0245 | 8 | 63 | 19 | - | 8 | - | 0.2x45° | - | 6 |
| SM08-0800419063P0245 | 8 | 100 | 40 | - | 8 | - | 0.2x45° | - | 6 |
| SM08-1000422072P0245 | 10 | 72 | 22 | - | 10 | - | 0.2x45° | - | 6 |
| SM08-1000422072P0245 | 10 | 100 | 45 | - | 10 | - | 0.2x45° | - | 6 |
| SM08-1200426083P0245 | 12 | 83 | 26 | - | 12 | - | 0.2x45° | - | 6 |
| SM08-1200426083P0245 | 12 | 104 | 45 | - | 12 | - | 0.2x45° | - | 6 |
| SM08-1400430083P0345 | 14 | 83 | 30 | - | 14 | - | 0.3x45° | - | 6 |
| SM08-1400430083P0345 | 14 | 104 | 45 | - | 14 | - | 0.3x45° | - | 6 |
| SM08-1600434092P0345 | 16 | 92 | 34 | - | 16 | - | 0.3x45° | - | 6 |
| SM08-1600434092P0345 | 16 | 150 | 70 | - | 16 | - | 0.3x45° | - | 6 |
| SM08-1800436093P0445 | 18 | 92 | 36 | - | 18 | - | 0.4x45° | - | 8 |
| SM08-1800436093P0445 | 18 | 150 | 70 | - | 18 | - | 0.4x45° | - | 8 |
| SM08-2000440094P0445 | 20 | 104 | 40 | - | 20 | - | 0.4x45° | - | 8 |
| SM08-2000440094P0445 | 20 | 150 | 70 | - | 20 | - | 0.4x45° | - | 8 |
