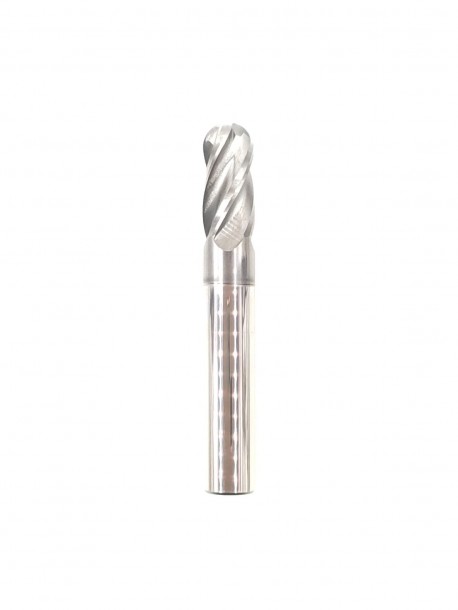

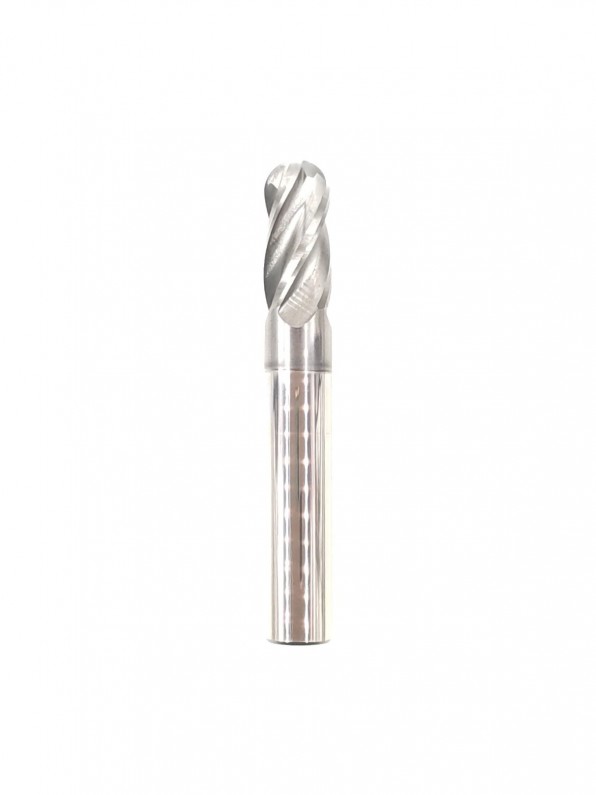

SM10 High Power Küresel Finish Freze

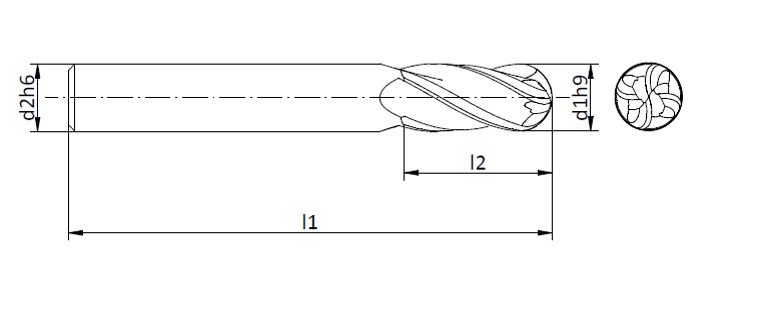

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM10-0300408050R0150 | 3 | 50 | 8 | - | 3 | - | - | 1.5 | 4 |
| SM10-0400408050R0200 | 4 | 50 | 8 | - | 4 | - | - | 2 | 4 |
| SM10-0500413050R0250 | 5 | 50 | 13 | - | 5 | - | - | 2.5 | 4 |
| SM10-0600414057R0300 | 6 | 57 | 14 | - | 6 | - | - | 3 | 4 |
| SM10-0800419063R0400 | 8 | 63 | 19 | - | 8 | - | - | 4 | 4 |
| SM10-1000422072R0500 | 10 | 72 | 22 | - | 10 | - | - | 5 | 4 |
| SM10-1200426083R0600 | 12 | 83 | 26 | - | 12 | - | - | 6 | 4 |
| SM10-1400426083R0700 | 14 | 83 | 26 | - | 14 | - | - | 7 | 4 |
| SM10-1600432092R0800 | 16 | 92 | 32 | - | 16 | - | - | 8 | 4 |
| SM10-1800432093R0900 | 18 | 92 | 32 | - | 18 | - | - | 9 | 4 |
| SM10-2000432104R1000 | 20 | 104 | 38 | - | 20 | - | - | 10 | 4 |
