SFR-M3 SERİSİ

SM03 High Power Freze

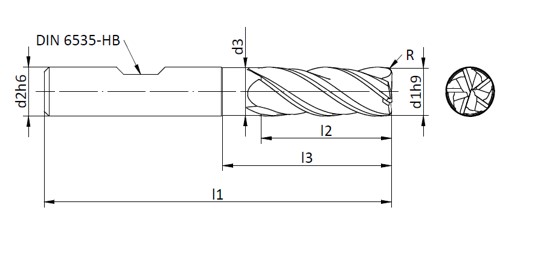

KOD	d1h9	L1	L2	L3	d2h6	d3	Ch	RADYUS	Z
SM03-0500415057P0245	5	57	15	20	6	4,7	0.2x45°	-	4
SM03-0500415057R0050	5	57	15	20	6	4,7	-	R0.5	4
SM03-0600415057P0245	6	57	15	20	6	5,7	0.2x45°	-	4
SM03-0600415057R0050	6	57	15	20	6	5,7	-	R0.5	4
SM03-0600415057R0100	6	57	15	20	6	5,7	-	R1	4
SM03-0800422063P0345	8	63	19	29	8	7,7	0.3x45°	-	4
SM03-0800422063R0050	8	63	19	29	8	7,7	-	R0.5	4
SM03-0800422063R0100	8	63	19	29	8	7,7	-	R1	4
SM03-1000527072P0345	10	72	22	35	10	9,7	0.3x45°	-	5
SM03-1000527072R0050	10	72	22	35	10	9,7	-	R0.5	5
SM03-1000527072R0100	10	72	22	35	10	9,7	-	R1	5
SM03-1000527072	10	72	22	35	10	9,7	-	-	5
SM03-1200530083P0345	12	83	26	40	12	11,7	0.3x45°	-	5
SM03-1200530083R0050	12	83	26	40	12	11,7	-	R0.5	5
SM03-1200530083R0100	12	83	26	40	12	11,7	-	R1	5
SM03-1200530083	12	83	26	40	12	11,7	-	-	5
SM03-1400530083R0050	14	83	26	40	14	13,7	-	R0.5	5
SM03-1400530083R0075	14	83	26	40	14	13,7	-	R0.75	5
SM03-1400530083R0150	14	83	26	40	14	13,7	-	R1.5	5
SM03-1400530083	14	83	26	40	14	13,7	-	-	5
SM03-1600538092R0050	16	92	32	45	16	15,5	-	R0.5	5
SM03-1600538092R0075	16	92	32	45	16	15,5	-	R0.75	5
SM03-1600538092R0100	16	92	32	45	16	15,5	-	R1	5
SM03-1600538092R0150	16	92	32	45	16	15,5	-	R1.5	5
SM03-1600438092	16	92	32	45	16	15,5	-	-	5
SM03-1800540092R0050	18	92	32	50	18	17,5	-	R0.5	5
SM03-1800540092R0100	18	92	32	50	18	17,5	-	R1	5
SM03-2000540104R0075	20	104	38	55	20	19,5	-	R0.75	5
SM03-2000540104R0150	20	104	38	55	20	19,5	-	R1.5	5
