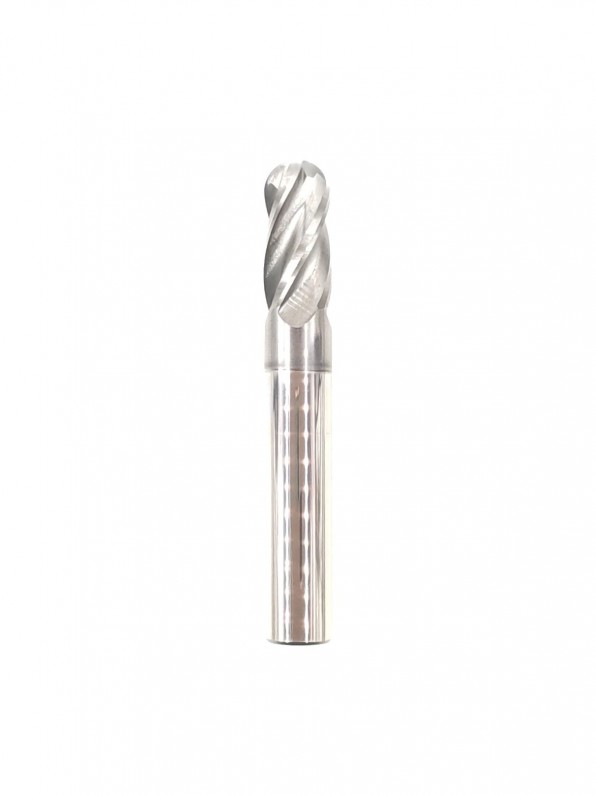

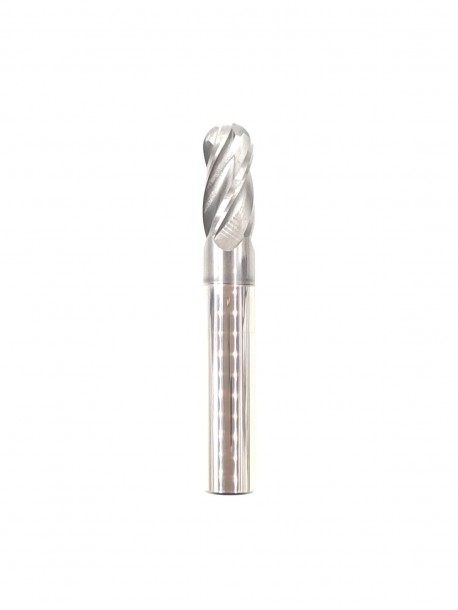

SM11 High Power Küresel Freze Long
| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM11-0300212075R0150 | 3 | 60 | 20 | - | 3 | - | - | 1.5 | 2 |
| SM11-0300412075R0150 | 3 | 60 | 20 | - | 3 | - | - | 1.5 | 4 |
| SM11-0400216075R0200 | 4 | 75 | 25 | - | 4 | - | - | 2 | 2 |
| SM11-0400416075R0200 | 4 | 75 | 25 | - | 4 | - | - | 2 | 4 |
| SM11-0500220075R0250 | 5 | 75 | 30 | - | 5 | - | - | 2.5 | 2 |
| SM11-0500420075R0250 | 5 | 75 | 30 | - | 5 | - | - | 2.5 | 4 |
| SM11-0600225100R0300 | 6 | 75 | 30 | - | 6 | - | - | 3 | 2 |
| SM11-0600425100R0300 | 6 | 100 | 40 | - | 6 | - | - | 3 | 4 |
| SM11-0800235100R0400 | 8 | 100 | 40 | - | 8 | - | - | 4 | 2 |
| SM11-0800435100R0400 | 8 | 100 | 40 | - | 8 | - | - | 4 | 4 |
| SM11-1000240100R0500 | 10 | 100 | 40 | - | 10 | - | - | 5 | 2 |
| SM11-1000440100R0500 | 10 | 100 | 40 | - | 10 | - | - | 5 | 4 |
| SM11-1200240100R0600 | 12 | 100 | 45 | - | 12 | - | - | 6 | 2 |
| SM11-1200440100R0600 | 12 | 100 | 45 | - | 12 | - | - | 6 | 4 |
| SM11-1400250150R0700 | 14 | 150 | 60 | - | 14 | - | - | 7 | 2 |
| SM11-1400460150R0700 | 14 | 150 | 60 | - | 14 | - | - | 7 | 4 |
| SM11-1600250150R0800 | 16 | 150 | 70 | - | 16 | - | - | 8 | 2 |
| SM11-1600465150R0800 | 16 | 150 | 70 | - | 16 | - | - | 8 | 4 |
| SM11-1800250150R0900 | 18 | 150 | 70 | - | 18 | - | - | 9 | 2 |
| SM11-1800465150R0900 | 18 | 150 | 70 | - | 18 | - | - | 9 | 4 |
| SM11-2000250150R1000 | 20 | 150 | 70 | - | 20 | - | - | 10 | 2 |
| SM11-2000470150R1000 | 20 | 150 | 70 | - | 20 | - | - | 10 | 4 |
