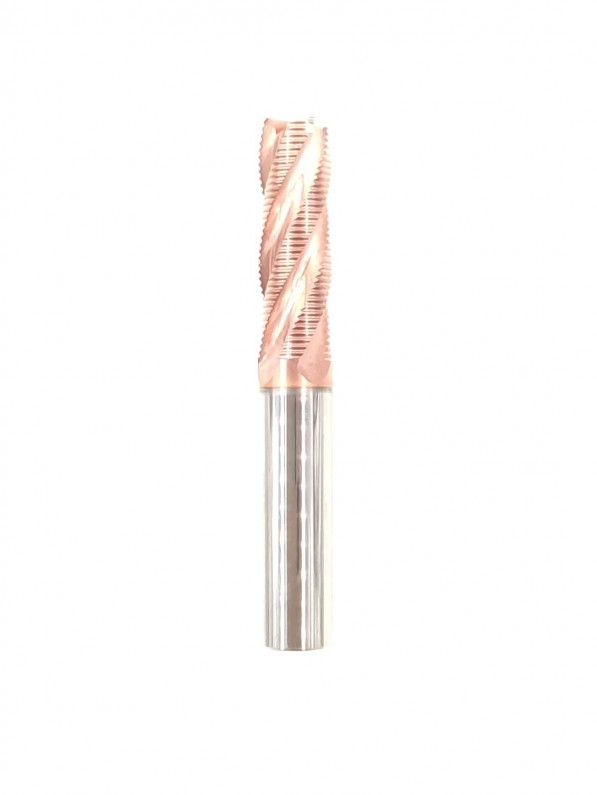

SM12 Kaba Talaş Freze

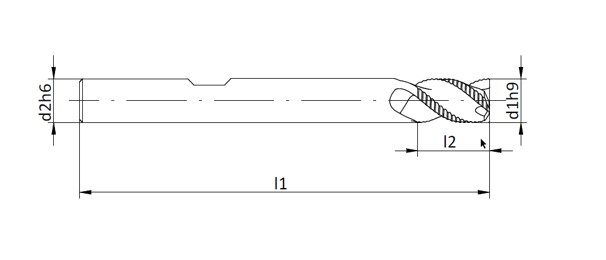

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM12-0600413057 | 6 | 57 | 13 | - | 6 | - | - | - | 4 |
| SM12-0600420057 | 6 | 57 | 20 | - | 6 | - | - | - | 4 |
| SM12-0800419063 | 8 | 63 | 19 | - | 8 | - | - | - | 4 |
| SM12-0800425063 | 8 | 63 | 25 | - | 8 | - | - | - | 4 |
| SM12-1000422072 | 10 | 72 | 22 | - | 10 | - | - | - | 4 |
| SM12-1000430072 | 10 | 72 | 30 | - | 10 | - | - | - | 4 |
| SM12-1200426083 | 12 | 83 | 26 | - | 12 | - | - | - | 4 |
| SM12-1200440083 | 12 | 83 | 40 | - | 12 | - | - | - | 4 |
| SM12-1400426083 | 14 | 83 | 26 | - | 14 | - | - | - | 4 |
| SM12-1400440083 | 14 | 83 | 40 | - | 14 | - | - | - | 4 |
| SM12-1600432092 | 16 | 92 | 32 | - | 16 | - | - | - | 4 |
| SM12-1600450092 | 16 | 92 | 50 | - | 16 | - | - | - | 4 |
| SM12-1800432092 | 18 | 92 | 32 | - | 18 | - | - | - | 4 |
| SM12-1800450092 | 18 | 92 | 50 | - | 18 | - | - | - | 4 |
| SM12-2000438104 | 20 | 104 | 38 | - | 20 | - | - | - | 4 |
| SM12-2000455104 | 20 | 104 | 55 | - | 20 | - | - | - | 4 |
