SM14 High Power Face Finish Freze

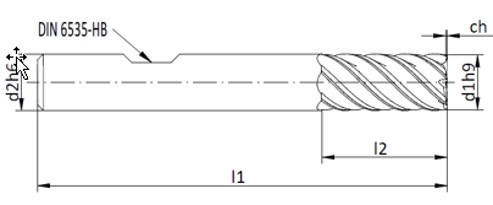

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM14-0500408057P0245 | 5 | 57 | 8 | - | 6 | - | 0.1x45° | - | 4 |
| SM14-0600408057P0245 | 6 | 57 | 8 | - | 6 | - | 0.1x45° | - | 4 |
| SM14-0800410063P0245 | 8 | 63 | 10 | - | 8 | - | 0.2x45° | - | 4 |
| SM14-1000415072P0245 | 10 | 72 | 15 | - | 10 | - | 0.2x45° | - | 4 |
| SM14-1200415083P0245 | 12 | 83 | 15 | - | 12 | - | 0.2x45° | - | 4 |
| SM14-1400520083P0345 | 14 | 83 | 20 | - | 14 | - | 0.3x45° | - | 5 |
| SM14-1600522092P0345 | 16 | 92 | 22 | - | 16 | - | 0.3x45° | - | 5 |
| SM14-1800625092P0345 | 18 | 92 | 25 | - | 18 | - | 0.3x45° | - | 6 |
| SM14-2000630104P0345 | 20 | 104 | 30 | - | 20 | - | 0.3x45° | - | 6 |
