SM18 Pah Kırma Frezesi

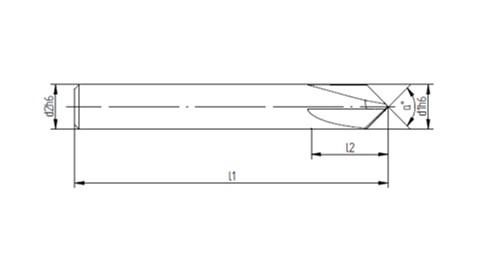

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | α° | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM18-04004050A090 | 4 | 40 | - | - | 4 | - | - | 90° | 4 |
| SM18-05004050A090 | 5 | 50 | - | - | 5 | - | - | 90° | 4 |
| SM18-06004057A090 | 6 | 57 | - | - | 6 | - | - | 90° | 4 |
| SM18-08004063A090 | 8 | 63 | - | - | 8 | - | - | 90° | 4 |
| SM18-08006063A090 | 8 | 63 | - | - | 8 | - | - | 90° | 6 |
| SM18-10004072A090 | 10 | 72 | - | - | 10 | - | - | 90° | 4 |
| SM18-10006072A090 | 10 | 72 | - | - | 10 | - | - | 90° | 6 |
| SM18-12004083A090 | 12 | 83 | - | - | 12 | - | - | 90° | 4 |
| SM18-12006083A090 | 12 | 83 | - | - | 12 | - | - | 90° | 6 |
