SM19 Alüminyum Frezesi

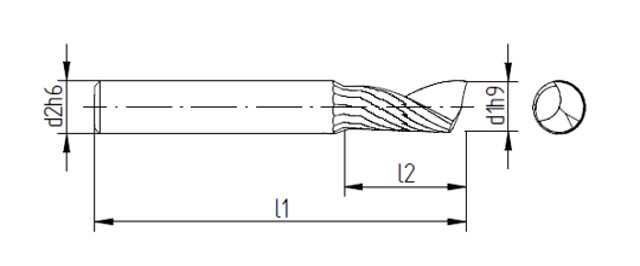

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM19-0300110050 | 3 | 38 | 10 | - | 3 | - | - | - | 1 |
| SM19-0300115060 | 3 | 60 | 15 | - | 3 | - | - | - | 1 |
| SM19-0400112050 | 4 | 50 | 12 | - | 4 | - | - | - | 1 |
| SM19-0400116060 | 4 | 60 | 16 | - | 4 | - | - | - | 1 |
| SM19-0500113050 | 5 | 50 | 13 | - | 5 | - | - | - | 1 |
| SM19-0500118063 | 5 | 63 | 18 | - | 5 | - | - | - | 1 |
| SM19-0600113057 | 6 | 57 | 13 | - | 6 | - | - | - | 1 |
| SM19-0600125075 | 6 | 75 | 25 | - | 6 | - | - | - | 1 |
| SM19-0800118063 | 8 | 63 | 18 | - | 8 | - | - | - | 1 |
| SM19-0800132075 | 8 | 75 | 32 | - | 8 | - | - | - | 1 |
| SM19-1000124072 | 10 | 72 | 24 | - | 10 | - | - | - | 1 |
| SM19-1000140100 | 10 | 100 | 40 | - | 10 | - | - | - | 1 |
| SM19-1200126083 | 12 | 83 | 26 | - | 12 | - | - | - | 1 |
| SM19-1200145100 | 12 | 100 | 45 | - | 12 | - | - | - | 1 |
| SM19-1400126083 | 14 | 83 | 26 | - | 14 | - | - | - | 1 |
| SM19-1400145100 | 14 | 100 | 45 | - | 14 | - | - | - | 1 |
