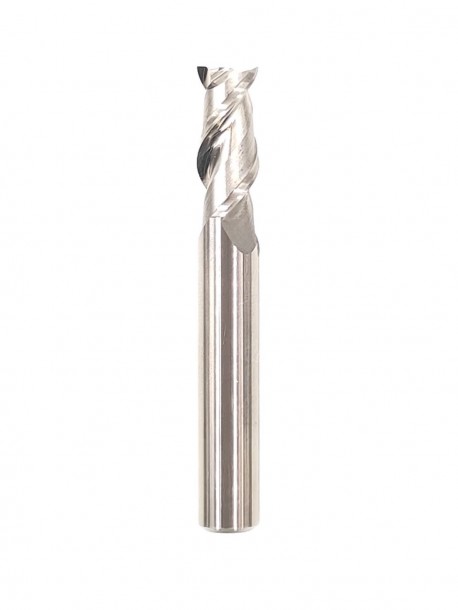

SM20 High Power Alüminyum Frezesi

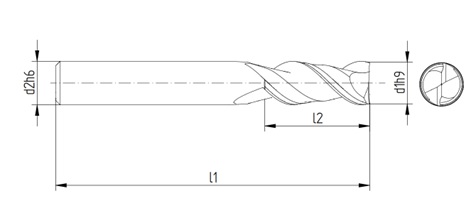

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM20-0300210050 | 3 | 38 | 10 | 13 | 3 | 2,95 | - | - | 2 |
| SM20-0300215060 | 3 | 60 | 15 | 20 | 3 | 2,95 | - | - | 2 |
| SM20-0400212050 | 4 | 50 | 12 | 16 | 4 | 3,9 | - | - | 2 |
| SM20-0400216060 | 4 | 60 | 16 | 22 | 4 | 3,9 | - | - | 2 |
| SM20-0500213050 | 5 | 50 | 13 | 18 | 5 | 4,8 | - | - | 2 |
| SM20-0500218063 | 5 | 63 | 18 | 23 | 5 | 4,8 | - | - | 2 |
| SM20-0600213057 | 6 | 57 | 13 | 18 | 6 | 5,8 | - | - | 2 |
| SM20-0600225075 | 6 | 75 | 25 | 35 | 6 | 5,8 | - | - | 2 |
| SM20-0800218063 | 8 | 63 | 18 | 23 | 8 | 7,8 | - | - | 2 |
| SM20-0800232075 | 8 | 75 | 32 | 42 | 8 | 7,8 | - | - | 2 |
| SM20-1000224072 | 10 | 72 | 24 | 32 | 10 | 9,7 | - | - | 2 |
| SM20-1000240100 | 10 | 100 | 40 | 50 | 10 | 9,7 | - | - | 2 |
| SM20-1200226083 | 12 | 83 | 26 | 36 | 12 | 11,7 | - | - | 2 |
| SM20-1200245100 | 12 | 100 | 45 | 55 | 12 | 11,7 | - | - | 2 |
| SM20-1400226083 | 14 | 83 | 26 | 40 | 14 | 13,6 | - | - | 2 |
| SM20-1400245104 | 14 | 104 | 45 | 60 | 14 | 13,6 | - | - | 2 |
| SM20-1600232092 | 16 | 92 | 32 | 45 | 16 | 15,6 | - | - | 2 |
| SM20-1600245104 | 16 | 104 | 45 | 60 | 16 | 15,6 | - | - | 2 |
| SM20-1800232092 | 18 | 92 | 32 | 45 | 18 | 17,6 | - | - | 2 |
| SM20-1800245104 | 18 | 104 | 45 | 60 | 18 | 17,6 | - | - | 2 |
| SM20-2000235100 | 20 | 100 | 32 | 50 | 20 | 19,6 | - | - | 2 |
| SM20-2000245104 | 20 | 104 | 45 | 60 | 20 | 19,6 | - | - | 2 |
