SM21 High Power Alüminyum Frezesi

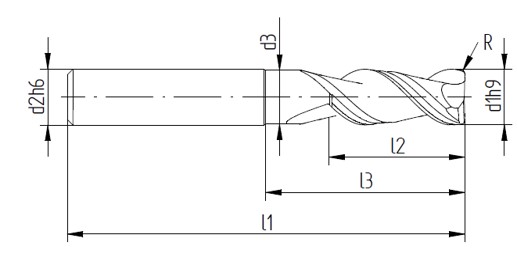

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM21-0300310050R0010 | 3 | 38 | 10 | 13 | 3 | 2,95 | - | R0.1 | 3 |
| SM21-0300315060R0010 | 3 | 60 | 15 | 20 | 3 | 2,95 | - | R0.1 | 3 |
| SM21-0400312050R0010 | 4 | 50 | 12 | 16 | 4 | 3,9 | - | R0.1 | 3 |
| SM21-0400316060R0010 | 4 | 60 | 16 | 22 | 4 | 3,9 | - | R0.1 | 3 |
| SM21-0500313050R0020 | 5 | 50 | 13 | 18 | 5 | 4,8 | - | R0.2 | 3 |
| SM21-0500318063R0020 | 5 | 63 | 18 | 23 | 5 | 4,8 | - | R0.2 | 3 |
| SM21-0600313057R0020 | 6 | 57 | 13 | 18 | 6 | 5,8 | - | R0.2 | 3 |
| SM21-0600325075R0020 | 6 | 75 | 25 | 35 | 6 | 5,8 | - | R0.2 | 3 |
| SM21-0800318063R0020 | 8 | 63 | 18 | 23 | 8 | 7,8 | - | R0.2 | 3 |
| SM21-0800332075R0020 | 8 | 75 | 32 | 42 | 8 | 7,8 | - | R0.2 | 3 |
| SM21-1000324072R0030 | 10 | 72 | 24 | 32 | 10 | 9,7 | - | R0.3 | 3 |
| SM21-1000340100R0030 | 10 | 100 | 40 | 50 | 10 | 9,7 | - | R0.3 | 3 |
| SM21-1200326083R0030 | 12 | 83 | 26 | 36 | 12 | 11,7 | - | R0.3 | 3 |
| SM21-1200345100R0030 | 12 | 100 | 45 | 55 | 12 | 11,7 | - | R0.3 | 3 |
| SM21-1400326083R0030 | 14 | 83 | 26 | 40 | 14 | 13,6 | - | R0.3 | 3 |
| SM21-1400345104R0030 | 14 | 104 | 45 | 60 | 14 | 13,6 | - | R0.3 | 3 |
| SM21-1600332092R0040 | 16 | 92 | 32 | 45 | 16 | 15,6 | - | R0.4 | 3 |
| SM21-1600345104R0040 | 16 | 104 | 45 | 60 | 16 | 15,6 | - | R0.4 | 3 |
| SM21-1800332092R0040 | 18 | 92 | 32 | 45 | 18 | 17,6 | - | R0.4 | 3 |
| SM21-1800345104R0040 | 18 | 104 | 45 | 60 | 18 | 17,6 | - | R0.4 | 3 |
| SM21-2000335100R0040 | 20 | 100 | 35 | 50 | 20 | 19,6 | - | R0.4 | 3 |
| SM21-2000345104R0040 | 20 | 104 | 45 | 60 | 20 | 19,6 | - | R0.4 | 3 |
