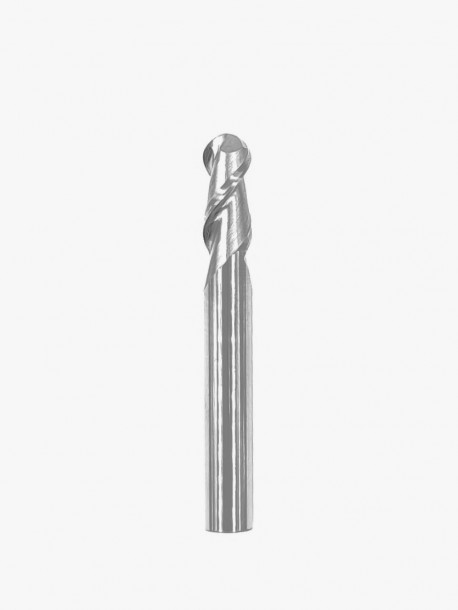

SM22 High Power Küresel Alüminyum Frezesi

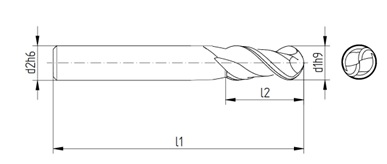

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM22-0200206050R0100 | 2 | 50 | 6 | 10 | 3 | 1,95 | - | R1 | 2 |
| SM22-0300206050R0150 | 3 | 50 | 6 | 10 | 3 | 2,9 | - | R1.5 | 2 |
| SM22-0300215060R0150 | 3 | 60 | 15 | 20 | 3 | 2,9 | - | R1.5 | 2 |
| SM22-0400208050R0200 | 4 | 50 | 8 | 12 | 4 | 3,8 | - | R2 | 2 |
| SM22-0400225075R0200 | 4 | 75 | 25 | 30 | 4 | 3,8 | - | R2 | 2 |
| SM22-0500213050R0250 | 5 | 50 | 13 | 13 | 5 | 4,8 | - | R2.5 | 2 |
| SM22-0500230075R0250 | 5 | 75 | 30 | 30 | 5 | 4,8 | - | R2.5 | 2 |
| SM22-0600213057R0300 | 6 | 57 | 13 | 17 | 6 | 5,7 | - | R3 | 2 |
| SM22-0600230075R0300 | 6 | 75 | 30 | 35 | 6 | 5,7 | - | R3 | 2 |
| SM22-0800225063R0400 | 8 | 63 | 19 | 25 | 8 | 7,7 | - | R4 | 2 |
| SM22-0800230075R0400 | 8 | 75 | 30 | 35 | 8 | 7,7 | - | R4 | 2 |
| SM22-1000222072R0500 | 10 | 72 | 22 | 30 | 10 | 9,7 | - | R5 | 2 |
| SM22-1000240100R0500 | 10 | 100 | 40 | 50 | 10 | 9,7 | - | R5 | 2 |
| SM22-1200226083R0600 | 12 | 83 | 26 | 33 | 12 | 11,7 | - | R6 | 2 |
| SM22-1200245100R0600 | 12 | 100 | 45 | 60 | 12 | 11,7 | - | R6 | 2 |
| SM22-1400226083R0700 | 14 | 83 | 26 | 40 | 14 | 13,6 | - | R7 | 2 |
| SM22-1400245100R0700 | 14 | 100 | 45 | 60 | 14 | 13,6 | - | R7 | 2 |
| SM22-1600232092R0800 | 16 | 92 | 32 | 45 | 16 | 15,6 | - | R8 | 2 |
| SM22-1600232092R0800 | 16 | 100 | 45 | 60 | 16 | 15,6 | - | R8 | 2 |
| SM22-1800232093R0900 | 18 | 92 | 32 | 45 | 18 | 17,5 | - | R9 | 2 |
| SM22-1800245100R0900 | 18 | 100 | 45 | 60 | 18 | 17,5 | - | R9 | 2 |
| SM22-2000238104R1000 | 20 | 104 | 38 | 55 | 20 | 19,5 | - | R10 | 2 |
| SM22-2000245100R1000 | 20 | 100 | 45 | 55 | 20 | 19,5 | - | R10 | 2 |
