SM23 High Power Alüminyum Finish Freze

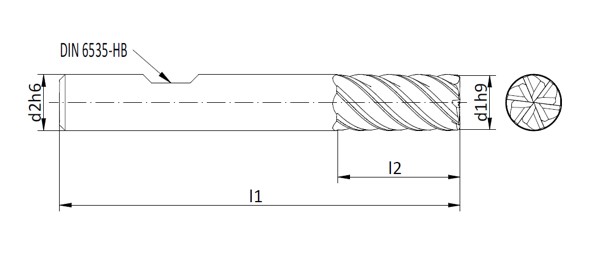

| KOD | d1h9 | L1 | L2 | L3 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|
| SM23-0600413057 | 6 | 57 | 13 | - | 6 | - | - | - | 6 |
| SM23-0600413057 | 6 | 57 | 25 | - | 6 | - | - | - | 6 |
| SM23-0800419063 | 8 | 63 | 19 | - | 8 | - | - | - | 6 |
| SM23-0800419063 | 8 | 63 | 30 | - | 8 | - | - | - | 6 |
| SM23-1000422072 | 10 | 72 | 22 | - | 10 | - | - | - | 6 |
| SM23-1000422072 | 10 | 72 | 35 | - | 10 | - | - | - | 6 |
| SM23-1200426083 | 12 | 83 | 26 | - | 12 | - | - | - | 6 |
| SM23-1200426083 | 12 | 83 | 40 | - | 12 | - | - | - | 6 |
| SM23-1400430083 | 14 | 83 | 30 | - | 14 | - | - | - | 6 |
| SM23-1400430083 | 14 | 83 | 45 | - | 14 | - | - | - | 6 |
| SM23-1600434092 | 16 | 92 | 34 | - | 16 | - | - | - | 6 |
| SM23-1600434092 | 16 | 92 | 50 | - | 16 | - | - | - | 6 |
| SM23-1800436093 | 18 | 92 | 36 | - | 18 | - | - | - | 8 |
| SM23-1800436093 | 18 | 92 | 50 | - | 18 | - | - | - | 8 |
| SM23-2000440094 | 20 | 104 | 40 | - | 20 | - | - | - | 8 |
| SM23-2000440094 | 20 | 104 | 55 | - | 20 | - | - | - | 8 |
