SM25 High Power Küre Dalma Freze

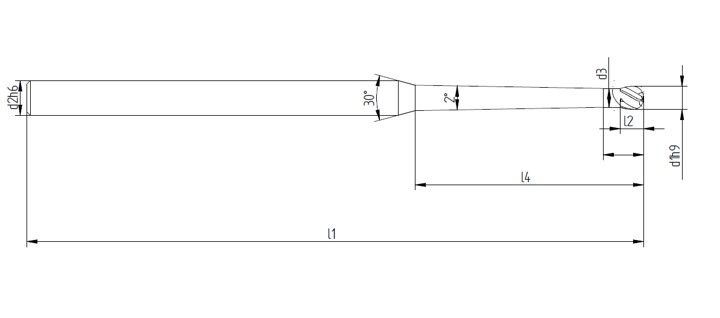

| KOD | d1h9 | L1 | L2 | L3 | L4 | d2h6 | d3 | Ch | RADYUS | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| SM25-0200402066R0100 | 2 | 66 | 2 | 4 | 15 | 6 | 1,95 | - | 1 | 4 |
| SM25-0200402066R0100 | 2 | 66 | 2 | 4 | 25 | 6 | 1,95 | - | 1 | 4 |
| SM25-0200402066R0100 | 2 | 66 | 2 | 4 | 35 | 6 | 1,95 | - | 1 | 4 |
| SM25-0200403066R0150 | 3 | 66 | 3 | 6 | 20 | 6 | 2,9 | - | 1.5 | 4 |
| SM25-0300403082R0150 | 3 | 82 | 3 | 6 | 35 | 6 | 2,9 | - | 1.5 | 4 |
| SM25-0300403082R0150 | 3 | 82 | 3 | 6 | 40 | 6 | 2,9 | - | 1.5 | 4 |
| SM25-0400404082R0200 | 4 | 82 | 4 | 7 | 35 | 6 | 3,9 | - | 2 | 4 |
| SM25-0400404082R0200 | 4 | 82 | 4 | 7 | 40 | 6 | 3,9 | - | 2 | 4 |
| SM25-0400404082R0200 | 4 | 82 | 4 | 7 | 45 | 6 | 3,9 | - | 2 | 4 |
| SM25-0600409108R0300 | 6 | 108 | 9 | 12 | 50 | 8 | 5,9 | - | 3 | 4 |
| SM25-0600409108R0300 | 6 | 108 | 9 | 12 | 60 | 8 | 5,9 | - | 3 | 4 |
| SM25-0800412108R0400 | 8 | 108 | 12 | 15 | 60 | 10 | 7,8 | - | 4 | 4 |
| SM25-0800412120R0400 | 8 | 120 | 12 | 15 | 80 | 10 | 7,8 | - | 4 | 4 |
| SM25-1000415120R0500 | 10 | 120 | 15 | 18 | 70 | 16 | 9,8 | - | 5 | 4 |
| SM25-1000415150R0500 | 10 | 150 | 15 | 18 | 100 | 16 | 9,8 | - | 5 | 4 |
| SM25-1200418120R0600 | 12 | 120 | 18 | 21 | 80 | 16 | 11,7 | - | 6 | 4 |
| SM25-1200418150R0600 | 12 | 150 | 18 | 21 | 110 | 16 | 11,7 | - | 6 | 4 |
