SD09 Matkap 3D TX Alüminyum Delik Delme

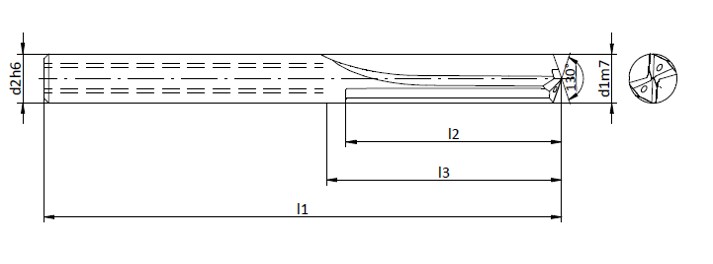

| KOD | d1m7 | L1 | L2 | L3 | d2h6 |
|---|---|---|---|---|---|
| SD09-0600230082 | 6 | 82 | 30 | 33 | 6 |
| SD09-0680230082 | 6,8 | 82 | 30 | 33 | 8 |
| SD09-0700230082 | 7 | 82 | 30 | 33 | 8 |
| SD09-0750235082 | 7,5 | 82 | 35 | 38 | 8 |
| SD09-0780235082 | 7,8 | 82 | 35 | 38 | 8 |
| SD09-0800235082 | 8 | 82 | 35 | 38 | 8 |
| SD09-0840235082 | 8,4 | 82 | 35 | 38 | 10 |
| SD09-0850235082 | 8,5 | 82 | 35 | 38 | 10 |
| SD09-0880235082 | 8,8 | 82 | 35 | 38 | 10 |
| SD09-0900235082 | 9 | 82 | 35 | 38 | 10 |
| SD09-0950240108 | 9,5 | 108 | 40 | 45 | 10 |
| SD09-1000245108 | 10 | 108 | 45 | 50 | 10 |
| SD09-1020245108 | 10,2 | 108 | 45 | 50 | 12 |
| SD09-1050245108 | 10,5 | 108 | 45 | 50 | 12 |
| SD09-1102550108 | 11 | 108 | 55 | 60 | 12 |
| SD09-1202550108 | 12 | 108 | 55 | 60 | 12 |
| SD09-1250255108 | 12,5 | 108 | 55 | 60 | 14 |
| SD09-1280255108 | 12,8 | 108 | 55 | 60 | 14 |
| SD09-1300255108 | 13 | 108 | 55 | 60 | 14 |
| SD09-1400260108 | 14 | 108 | 60 | 70 | 14 |
| SD09-1450260108 | 14,5 | 108 | 60 | 70 | 16 |
| SD09-1500260108 | 15 | 108 | 60 | 70 | 16 |
| SD09-1550260108 | 15,5 | 108 | 60 | 70 | 16 |
| SD09-1600260108 | 16 | 108 | 60 | 70 | 16 |
| SD09-1700275150 | 17 | 150 | 75 | 85 | 18 |
| SD09-1750275150 | 17,5 | 150 | 75 | 85 | 18 |
| SD09-1800275150 | 18 | 150 | 75 | 85 | 18 |
| SD09-1850275150 | 18,5 | 150 | 75 | 85 | 20 |
| SD09-1900275150 | 19 | 150 | 75 | 85 | 20 |
| SD09-1950275150 | 19,5 | 150 | 75 | 85 | 20 |
| SD09-2000275150 | 20 | 150 | 75 | 85 | 20 |
