SR01 High Performans Sağ Helis Sağ Kesim Rayba

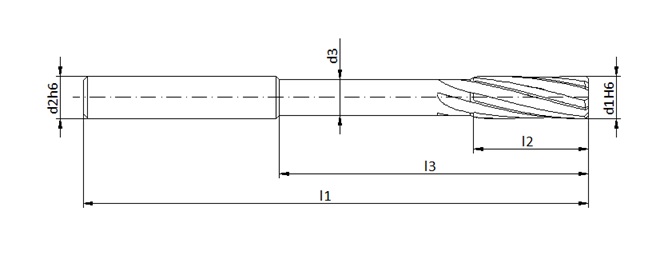

| KOD | d1H6 | L1 | L2 | L3 | d2h6 | d3 | Ch | Z |
|---|---|---|---|---|---|---|---|---|
| SR01-0400620095P0345 | 4 | 95 | 20 | 50 | 6 | 3,8 | 0,3x45° | 6 |
| SR01-0450620095P0345 | 4,5 | 95 | 20 | 50 | 6 | 4,3 | 0,3x45° | 6 |
| SR01-0500620095P0345 | 5 | 95 | 20 | 50 | 6 | 4,8 | 0,3x45° | 6 |
| SR01-0550620095P0345 | 5,5 | 95 | 20 | 50 | 6 | 5,3 | 0,3x45° | 6 |
| SR01-0600625105P0345 | 6 | 105 | 25 | 60 | 6 | 5,8 | 0,3x45° | 6 |
| SR01-0650625105P0445 | 6,5 | 105 | 25 | 60 | 8 | 6,3 | 0,4x45° | 6 |
| SR01-0700630110P0445 | 7 | 110 | 30 | 65 | 8 | 6,8 | 0,4x45° | 6 |
| SR01-0750630110P0445 | 7,5 | 110 | 30 | 65 | 8 | 7,3 | 0,4x45° | 6 |
| SR01-0800630110P0445 | 8 | 110 | 30 | 65 | 8 | 7,8 | 0,4x45° | 6 |
| SR01-0850630110P0445 | 8,5 | 110 | 30 | 65 | 10 | 8,3 | 0,4x45° | 6 |
| SR01-0900630110P0445 | 9 | 110 | 30 | 65 | 10 | 8,8 | 0,4x45° | 6 |
| SR01-0950635120P0445 | 9,5 | 120 | 35 | 75 | 10 | 9,3 | 0,4x45° | 6 |
| SR01-1000635120P0445 | 10 | 120 | 35 | 75 | 10 | 9,8 | 0,4x45° | 6 |
| SR01-1050638125P0545 | 10,5 | 125 | 38 | 80 | 12 | 10,2 | 0,5x45° | 6 |
| SR01-1100638125P0545 | 11 | 125 | 38 | 80 | 12 | 10,7 | 0,5x45° | 6 |
| SR01-1200640130P0545 | 12 | 130 | 40 | 85 | 12 | 11,7 | 0,5x45° | 6 |
| SR01-1300640130P0545 | 13 | 130 | 40 | 85 | 14 | 12,7 | 0,5x45° | 6 |
| SR01-1400640130P0545 | 14 | 130 | 40 | 85 | 14 | 13,6 | 0,5x45° | 6 |
| SR01-1500845150P0545 | 15 | 150 | 45 | 105 | 16 | 14,6 | 0,5x45° | 8 |
| SR01-1600845150P0645 | 16 | 150 | 45 | 105 | 16 | 15,6 | 0,6x45° | 8 |
| SR01-1700845150P0645 | 17 | 150 | 45 | 105 | 18 | 16,6 | 0,6x45° | 8 |
| SR01-1800850155P0845 | 18 | 155 | 50 | 110 | 18 | 17,6 | 0,8x45° | 8 |
| SR01-2000850155P0845 | 20 | 155 | 50 | 110 | 20 | 19,6 | 0,8x45° | 8 |
